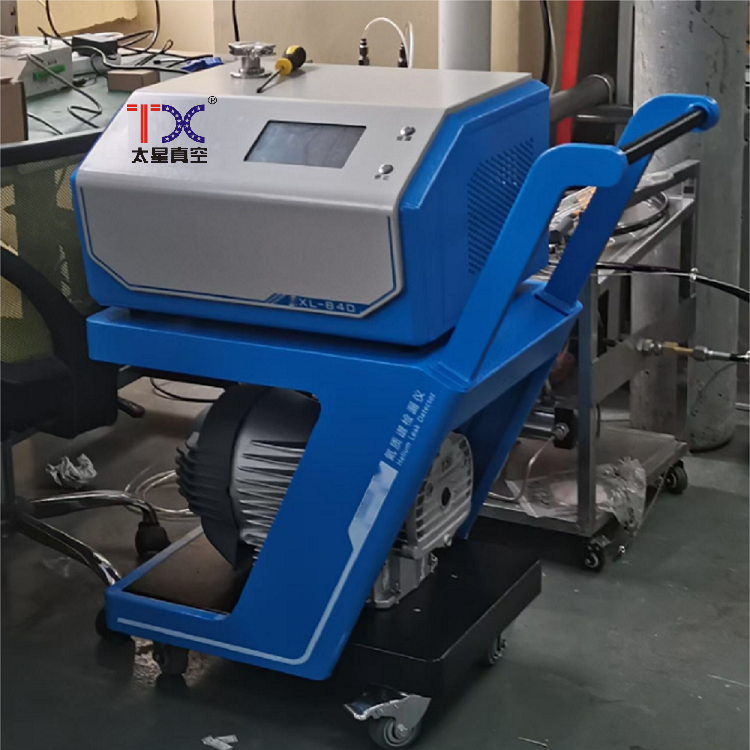

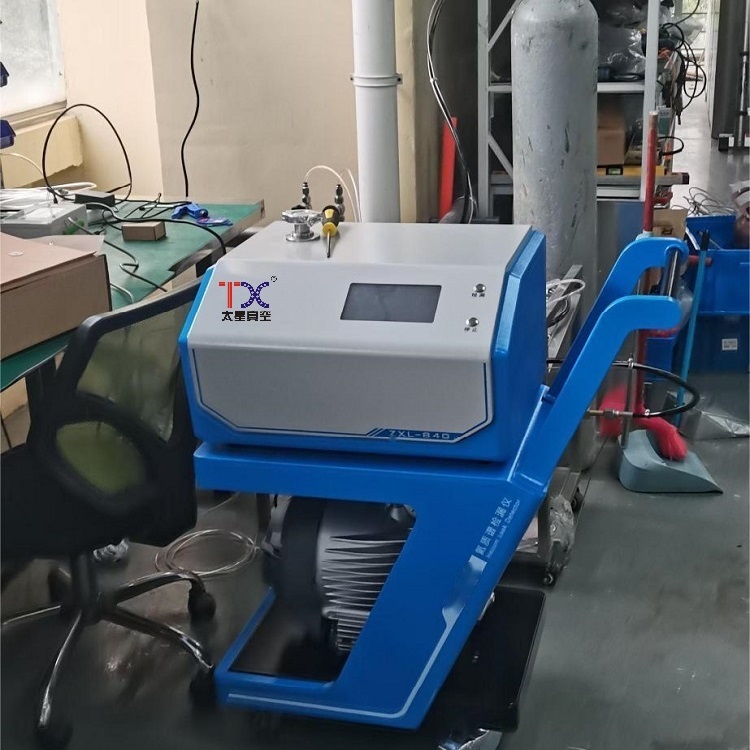

真空檢漏設備 氦質譜檢漏儀 ZXL-830 無損檢測儀器 真空爐檢漏
返回列表
Product Introduction
●Chinese and English menu interfaceThe entire machine has reached the international advanced level
Main configuration
1.Imported molecular pump
2.Imported mechanical pump
3.Built in standard leak hole
4.American AD amplifier
5.Mass spectrometry dedicated module
6.Delta LCD touch color screen
Specification
|
1. Minimum detectable leakage rate: 3×10-13Pa ·m3/s |
|
2. Leakage rate display range: 1×10? 1- 1×10-13Pa ·m3/s |
|
3. Starting time: ≤ 3min |
|
4. Response time: ≤ 0.5s |
|
5. Maximum pressure at the leak detection port: 1500Pa |
|
6. Mechanical pump pumping speed: 8m3/h （12 m3/h） |
|
7. Power requirements: 220V, 50Hz, single-phase, 10A |
|
8. Working environment: 5-35 ℃ |
|
9. Relative humidity: ≤ 80% |
|
10. Boundary dimension:550(W)×450(D)×880(H) |
|
11. Weight: 62kg |
